Sport X2 Apache · Standard Features
• Rear seat Steering & Throttle
• Steering Dampener
• EIS Digital, Airspeed, Fuel Gauges
• Spring-assisted Mast
• Rear Hydraulic Disc Brakes
• Remote Choke
• Hand & Foot Throttle
• Saddle Side Bags
• 17-gallon Fuel Tank
• 3 and 4 Point Harness
• Electric Starter
• 3-blade, 72" Warp Drive Propellor
• Oil Injector Tank (with Rotax 582)
• Full Fairing with Wheel Pants
• Rear seat Steering & Throttle
• Steering Dampener
• EIS Digital, Airspeed, Fuel Gauges
• Spring-assisted Mast
• Rear Hydraulic Disc Brakes
• Remote Choke
• Hand & Foot Throttle
• Saddle Side Bags
• 17-gallon Fuel Tank
• 3 and 4 Point Harness
• Electric Starter
• 3-blade, 72" Warp Drive Propellor
• Oil Injector Tank (with Rotax 582)
• Full Fairing with Wheel Pants

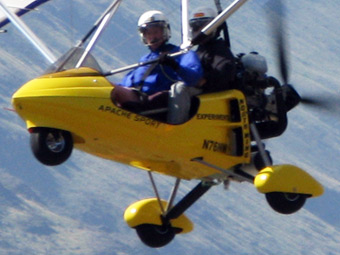

Sport X2 Apache · Fairings
The Sport X2 Apache features a sleek new fairing design with rugged strength and convenient storage space, and includes air induction vents for cooling.
The integrated canopy is perfectly sized and matched to the fairing for low drag and efficient wind deflection.
Fairing and Wheel Pants colors include Red, Yellow, White, or Black. If you have another color choice, talk to us about a custom color trike for you.
The Sport X2 Apache features a sleek new fairing design with rugged strength and convenient storage space, and includes air induction vents for cooling.
The integrated canopy is perfectly sized and matched to the fairing for low drag and efficient wind deflection.
Fairing and Wheel Pants colors include Red, Yellow, White, or Black. If you have another color choice, talk to us about a custom color trike for you.

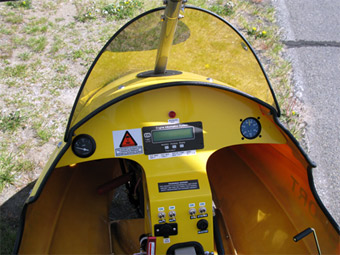

Sport X2 Apache · Avionics
The Sport X2 Apache instrument panel area has ample space for gauges, electronic flight information systems, and many switches.
Analog gauges include a Fuel Level gauge at the far left side, and Airspeed Indicator on the right side. A 12-volt power receptacle is included for powering GPS or other accessories.
The Sport X2 Apache instrument panel area has ample space for gauges, electronic flight information systems, and many switches.
Analog gauges include a Fuel Level gauge at the far left side, and Airspeed Indicator on the right side. A 12-volt power receptacle is included for powering GPS or other accessories.

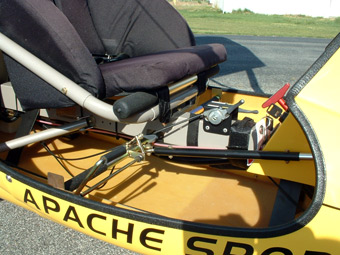

Sport X2 Apache · Dual Steering
This option is a must for the professional instructor.
Not only does it have dual steering, it also has a throttle linkage on the right front bar. Our steering bar is made of 4130 steel, and can be used as a step to get into the back seat; some trike brands are too weak to do that.
This option is a must for the professional instructor.
Not only does it have dual steering, it also has a throttle linkage on the right front bar. Our steering bar is made of 4130 steel, and can be used as a step to get into the back seat; some trike brands are too weak to do that.

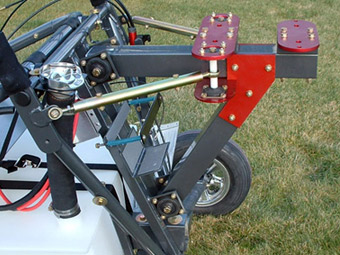

Sport X2 Apache · Back Frame
The most unique quality in the Apache design is the strong and durable welded chrome-moly and steel spine (back frame). All other major trike parts either bolt on, or plug into this fixture. This makes the Apache less expensive to repair and easy to work on. If you happen to have an incident while training where you might damage the trike, less expensive parts may need to be replaced and not the main supporting structure.
The most unique quality in the Apache design is the strong and durable welded chrome-moly and steel spine (back frame). All other major trike parts either bolt on, or plug into this fixture. This makes the Apache less expensive to repair and easy to work on. If you happen to have an incident while training where you might damage the trike, less expensive parts may need to be replaced and not the main supporting structure.

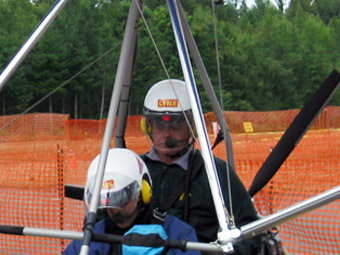

Sport X2 Apache · Dual Mast
The dual mast design of the Apache allows for unsurpassed headroom in the rear seat. Most other trikes will force you to bend your neck forward to not to hit the center mast.
The pivot point of the dual mast is mounted low, making it super easy to mount the wing.
The dual mast design of the Apache allows for unsurpassed headroom in the rear seat. Most other trikes will force you to bend your neck forward to not to hit the center mast.
The pivot point of the dual mast is mounted low, making it super easy to mount the wing.

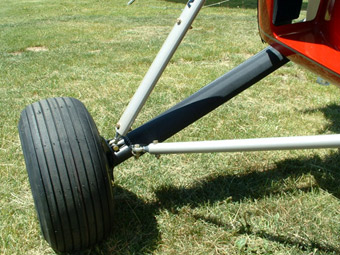

Sport X2 Apache · Rear Suspension
The Sport X2 features a dual pultuded fiberglass rod suspension.
The unique elliptical shape offers terrific flexing of the suspension upwards, while providing no flex to the rear.
Single fiberglass axles flex rearwards and wear the tires out. The fiberglass suspension provides soft and positive landings.
Click here to view an extreme weight drop-test video.
The Sport X2 features a dual pultuded fiberglass rod suspension.
The unique elliptical shape offers terrific flexing of the suspension upwards, while providing no flex to the rear.
Single fiberglass axles flex rearwards and wear the tires out. The fiberglass suspension provides soft and positive landings.
Click here to view an extreme weight drop-test video.

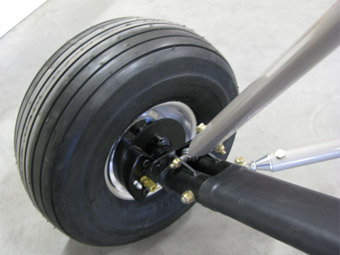

Sport X2 Apache · Disc Brakes
The new hydraulic disc brake system for the Sport X2 trike is... awesome!
This brake system will provide smooth, positive braking while applying just 1/2 of the pressure needed with the drum brake.
If you have a drum brake or small mechanical disc brake, you can upgrade your existing Apache. If you have the early 6" rim front end, you will also need a new 8" rim and tire.
The new hydraulic disc brake system for the Sport X2 trike is... awesome!
This brake system will provide smooth, positive braking while applying just 1/2 of the pressure needed with the drum brake.
If you have a drum brake or small mechanical disc brake, you can upgrade your existing Apache. If you have the early 6" rim front end, you will also need a new 8" rim and tire.
Sport X2 Apache

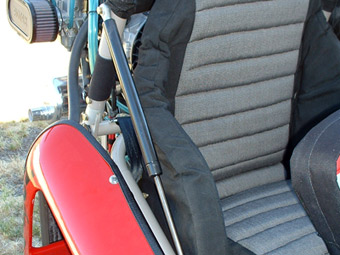

Spring-assist Mast
Sore back? Tired of lifting a 110-pound wing into the air? The Apache can now be equipped with gas-assist springs to aid you in lifting your wing up! No longer do you need to lift 100+ pounds into the air; with the springs attached, you will be lifting less than 20 pounds.
If you are ordering an Sport X2 Apache, this option is included. We also have a retro-fit kit for you, if you already have an Apache.
Spring-assist Mast
Sore back? Tired of lifting a 110-pound wing into the air? The Apache can now be equipped with gas-assist springs to aid you in lifting your wing up! No longer do you need to lift 100+ pounds into the air; with the springs attached, you will be lifting less than 20 pounds.
If you are ordering an Sport X2 Apache, this option is included. We also have a retro-fit kit for you, if you already have an Apache.

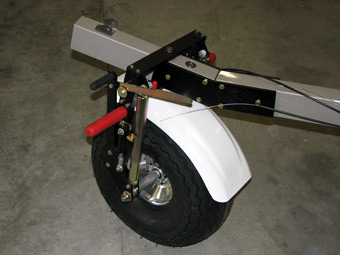

Sport X2 Apache · Front Steering
Here you see the rugged yet keen design of the Apache's front fork and suspension system. Its suspension (shocks) is of our own design, crafted of elastomer spring material such as used on commercial aircraft and mountain bikes. You will appreciate the solid yet responsive feel of our trailing link system. Best of all, the whole fork assembly is made of thick 6061 aluminum plates that bolt together. If you may need parts, you can replace only what you need, rather than buying the whole front fork.
Here you see the rugged yet keen design of the Apache's front fork and suspension system. Its suspension (shocks) is of our own design, crafted of elastomer spring material such as used on commercial aircraft and mountain bikes. You will appreciate the solid yet responsive feel of our trailing link system. Best of all, the whole fork assembly is made of thick 6061 aluminum plates that bolt together. If you may need parts, you can replace only what you need, rather than buying the whole front fork.

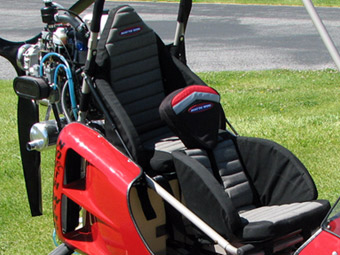

Sport X2 Apache · Seating Features
The Sport X2 Apache offers you a folding front seat back rest, allowing easy access to the rear seat. Also notice the 3-point harness for the rear seat, and 4-point harness for the front.
The Sport X2 Apache offers you a folding front seat back rest, allowing easy access to the rear seat. Also notice the 3-point harness for the rear seat, and 4-point harness for the front.

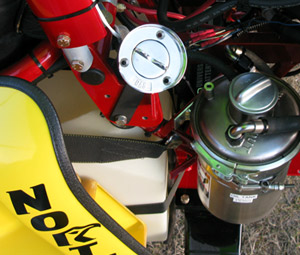

Sport X2 Apache · Fuel Filler
This is a nice feature. After seeing the difficulty of adding fuel to most trikes, we had our own tank made. This allows us to put the fuel filler in a most accessible place.
This is a nice feature. After seeing the difficulty of adding fuel to most trikes, we had our own tank made. This allows us to put the fuel filler in a most accessible place.

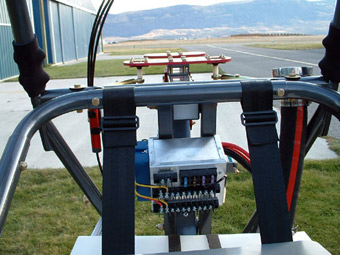

Sport X2 Apache · Fuse Box
Our trikes that have electric start will come equipped with an electrical fuse box. This box makes it very easy to add options, such as strobes and radios. We also use only the highest quality "Keywest" regulator.
Our trikes that have electric start will come equipped with an electrical fuse box. This box makes it very easy to add options, such as strobes and radios. We also use only the highest quality "Keywest" regulator.
Why fly a quality-built North Wing?
· Strong, fiberglass rear suspension
· Aircraft aluminum tubing frame
· Aircraft Hardware throughout
· Durable & rugged steel front forks
· Trailing-link steering with smooth action
· Elastomer springs - for smooth landings
· Extremely comfortable seat
· High ground clearance for off-field landings
· Strutted, foldable, low-profile wing
· Wing frame - 6061-T6 & 7075-T6 Aluminum
· Strong, fiberglass rear suspension
· Aircraft aluminum tubing frame
· Aircraft Hardware throughout
· Durable & rugged steel front forks
· Trailing-link steering with smooth action
· Elastomer springs - for smooth landings
· Extremely comfortable seat
· High ground clearance for off-field landings
· Strutted, foldable, low-profile wing
· Wing frame - 6061-T6 & 7075-T6 Aluminum
    |

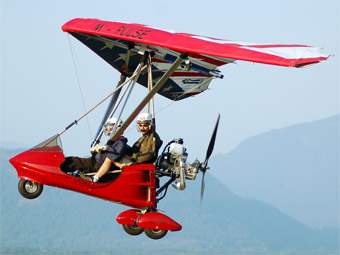

| - Click on a photo to view an enlargement - View more photos in the Photo Gallery Click here to view a flight video. |
The Sport X2 Apache wins the Sun n' Fun 2009 "Outstanding Weight Shift Light Sport Aircraft Award" Click here to view a photo. |
- Select for more details -
Sport X2 Apache photoStandard Features
Streamlined Fairings
Ample space for avionics
Dual Steering
Back Frame · Dual Mast
Rear Suspension · Rear Disc Brakes
Spring-assist Mast
Front Steering · Seating Features
Fuel Filler · Fuse Box
Why fly a quality North Wing?

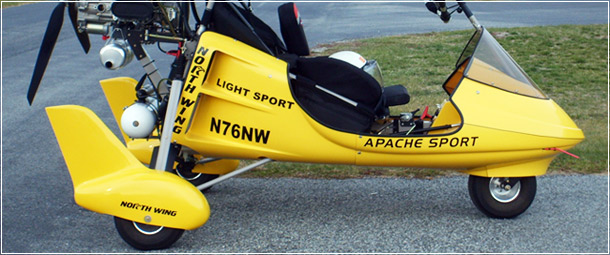

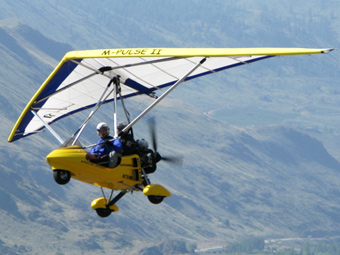

The Sport X2 Apache · Light Sport Trike airframe is a revolutionary design incorporating sport aircraft design suspension, welded 4130 aircraft steel main structure (Back Frame), 4130 dual mast and trailing link front steering. Unlike the tube-and-plate constructed trikes with their single mast, drag struts, side support cables and bungee cord suspension, the Sport X2 airframe will maintain its structural integrity for years to come. You can enjoy years of sturdy and confident flying knowing your trikes' rugged and well-designed suspension won't get worn out.
The Sport X2 Apache can be ordered with a variety of options. The Sport X2 is certified as a Special Light Sport Aircraft when paired with the powerful and reliable Rotax 582 engine and our new Mustang 3 15M trike wing. You can also fly the Sport X2 as a Experimental Light Sport Aircraft when using any other engine and/or wing configuration. The Sport X2 Apache provides a nice layout of gauges with room left over for your custom needs. Here you also see the rugged yet keen design of the Apache front fork wheel system. You will appreciate the solid yet responsive feel of its trailing link suspension. The front suspension works so well, it survived a full front wheel landing at 60 mph!
| Sport X2 (Rotax 582 engine) · Performance & Specifications | ||
| (Specifications in Feet, Inches, Pounds unless stated) | ||
| SPORT X2 (582) | SPORT X2 (582) | |
| PERFORMANCE | Mustang 3 15M Wing | GT5 Wing |
| Take-Off Distance / clear 50 feet | 550 | 700 |
| Landing Distance / clear 50 feet | 750 | 800 |
| Climb Rate @ Gross | 600 | 550 |
| Stall Speed @ Gross | 34 | 41 |
| Stall Speed @ 750 lbs. | 30 | 38 |
| Cruise @ Gross | 47 | 60 |
| Descent Rate@ Gross / Idle | 600 fpm @ 44 | 700 fpm @ 58 |
| Fuel Capacity Note b | 16.25 | 16.25 |
| Fuel Burn @ Cruise (Gross) | 4 | 4.75 |
| Range @ Cruise (Gross) | 180 | 195 |
| DESIGN LOADS | Mustang 3 15M Wing | GT5 Wing |
| Gross Weight or MTOW | 1060 | 1060 |
| Empty Weight | 450 | 455 |
| Maximum Empty Weight | 550 | 555 |
| Total Crew Weight @ full fuel | 440 | 435 |
| Minimum Take-Off Weight | 700 | 750 |
| DIMENSIONS | Mustang 3 15M Wing | GT5 Wing |
| Wing Span (feet) | 31.5 | 31.5 |
| Wing Area (meters) | 15 | 13.5 |
| Wing Weight | 113 | 118 |
| Height - wing level (feet) | 8.5 | 8.5 |
| Wheel Base C to C | 73 | 73 |
| Wheel Track | 68 | 68 |
Standard wing - Special Light Sport Aircraft: Mustang 3 15M strutted wing · 17M and 19M sizes available for E-LSA
| Sport X2 Apache S-LSA |
| Rotax 582E engine |
| Dual Ignition / Dual Carb |
| 65 HP / 3.47:1 |
| Electric Starter |
| 17 gallon Fuel Tank |
| 3-blade, 72" Warp Drive Propellor |
| EIS Digital Gauge |
 |
Kamron Blevins accepts the Outstanding Weight Shift Light Sport Aircraft Award
at Sun n' Fun 2009 for the North Wing Sport X2 Apache light sport aircraft.
