• Rear Seat Steering & Throttle
• Rear Seat Magneto Switches
• Steering Dampener
• EIS Digital, Airspeed, Fuel Gauges
• Spring-assisted Mast
• Rear Hydraulic Disc Brakes
• Remote Choke
• Hand & Foot Throttle
• Saddle Side Bags
• 17-gallon Fuel Tank
• 3 and 4 Point Harness
• Electric Starter
• 3-blade, 68" Warp Drive Propeller
• Oil Thermostat

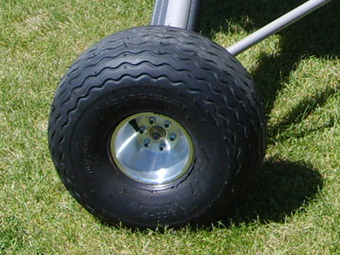

The Navajo can be configured with the optional Sand Tires kit, for ease of takeoff and landing on rough terrain.

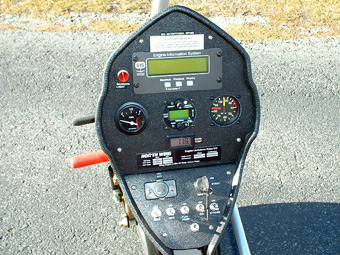

The Navajo has a streamlined instrument pod with ample space for gauges, electronic flight information systems, and many switches.
The instrument pod also includes 12V DC, to power your GPS or other 12V devices.
This option is a must for the professional instructor.

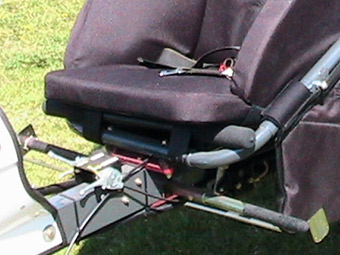

Not only does it have dual steering, it also has a throttle linkage on the right front bar. Our steering bar is made of 4130 steel, and can be used as a step to get into the back seat; some trike brands are too weak to do that.

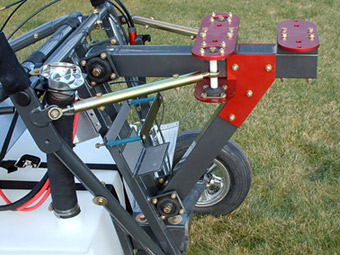

The most unique quality in the Navajo design is the strong and durable welded chrome-moly and steel spine (back frame). All other major trike parts either bolt on, or plug into this fixture. This makes the Navajo less expensive to repair and easy to work on. If you happen to have an incident while training where you might damage the trike, less expensive parts may need to be replaced and not the main supporting structure.

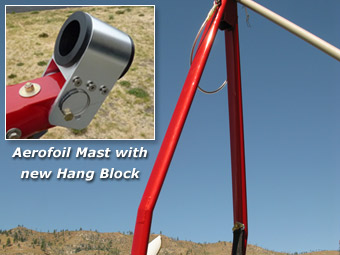

The dual mast design of the Navajo allows for unsurpassed headroom in the rear seat. Most other trikes will force you to bend your neck forward to not to hit the center mast. The pivot point of the dual mast is mounted low, making it super easy to mount the wing. The new Airfoil Mast reduces drag, and improves tracking at higher speeds by reducing yaw and twist of the mast by the stronger, more aerodynamic mast profile.
The new Pivot/Hang Block assures a snug fit to the keel.

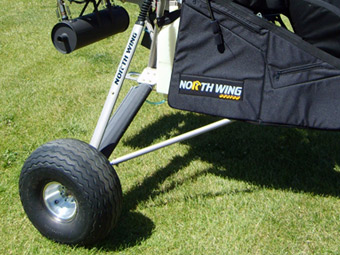

The Scout XC features a dual pultuded fiberglass rod suspension.
The unique elliptical shape offers terrific flexing of the suspension upwards, while providing no flex to the rear.
Single fiberglass axles flex rearwards and wear the tires out. The fiberglass suspension provides soft and positive landings.
Click here to view an extreme weight drop-test video.

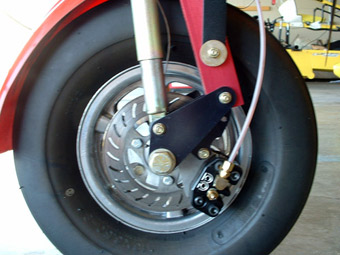

The new hydraulic disc brake system for the Navajo trike is... awesome!
Dual Hydraulic Rear Brakes are also standard.
This brake system will provide smooth, positive braking while applying just 1/2 of the pressure needed with the drum brake.
If you have a drum brake or small mechanical disc brake, you can upgrade your existing Navajo. If you have the early 6" rim front end, you will also need a new 8" rim and tire.

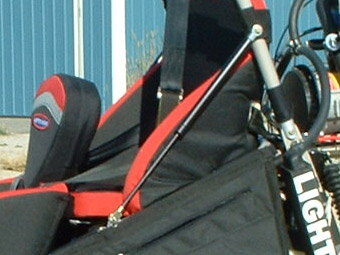

Spring-assist Mast
Sore back? Tired of lifting a 110-pound wing into the air? The Scout XC Navajo includes gas-assist springs to aid you in lifting your wing up! No longer do you need to lift 100+ pounds into the air; with the springs attached, you will be lifting less than 20 pounds.
We also have a retro-fit kit for you, if you already have an older Navajo.

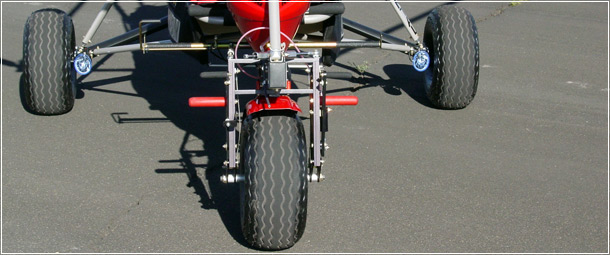

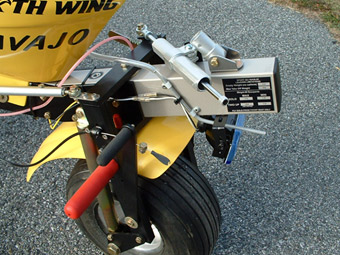

Here you see the rugged yet keen design of the Navajo's front fork and suspension system. Its suspension (shocks) is of our own design, crafted of elastomer spring material such as used on commercial aircraft and mountain bikes. You will appreciate the solid yet responsive feel of our trailing link system. Best of all, the whole fork assembly is made of thick 6061 aluminum plates that bolt together. If you may need parts, you can replace only what you need, rather than buying the whole front fork.

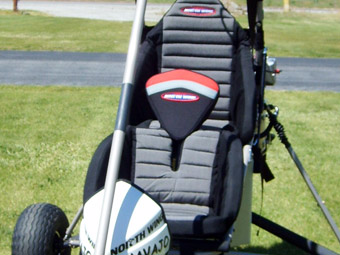

The Navajo offers you a folding front seat back rest, allowing easy access to the rear seat. Also notice the 3-point harness for the rear seat, and 4-point harness for the front.

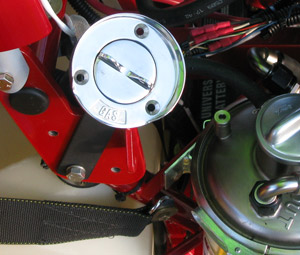

This is a nice feature. After seeing the difficulty of adding fuel to most trikes, we had our own tank made. This allows us to put the fuel filler in a most accessible place.

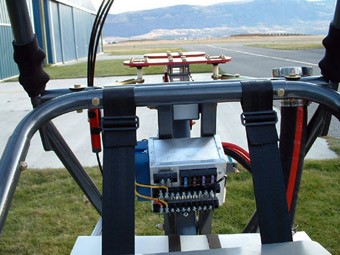

Our trikes that have electric start will come equipped with an electrical fuse box. This box makes it very easy to add options, such as strobes and radios. We also use only the highest quality "Keywest" regulator.
· Strong, fiberglass rear suspension
· Aircraft aluminum tubing frame
· Aircraft Hardware throughout
· Durable & rugged steel front forks
· Trailing-link steering with smooth action
· Elastomer springs - for smooth landings
· Extremely comfortable seat
· High ground clearance for off-field landings
· Strutted, foldable, low-profile wing
· Wing frame - 6061-T6 & 7075-T6 Aluminum
    |
| - Click on a photo to view an enlargement - |
- Select for more details -
Scout XC Navajo photoStandard Features
Sand Tires kit for rough terrain
Streamlined Instrument Pod
Dual Steering
Back Frame · Dual Mast
Rear Suspension
Spring-assist Mast
Front Steering · Seating Features
Fuel Filler · Fuse Box
Why fly a quality North Wing?

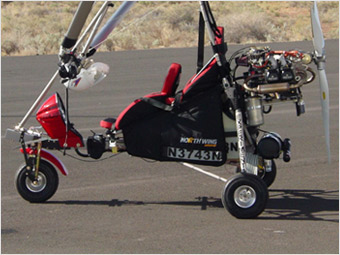

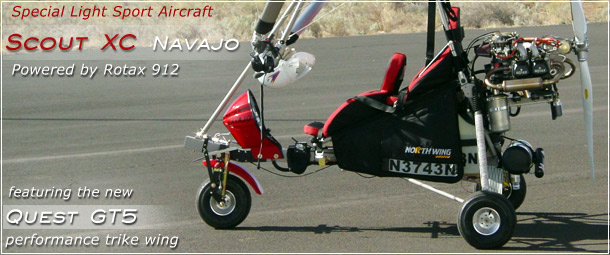

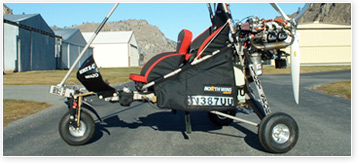

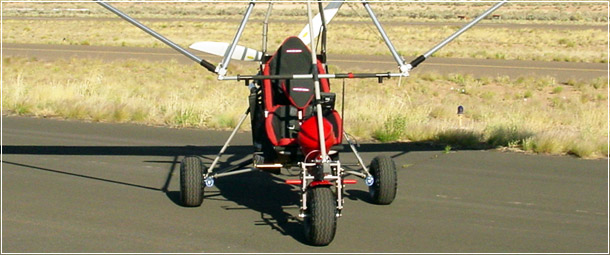

The Scout XC · Navajo 2-place Light Sport Trike has all of the qualities of the
Scout XC · Apache trike, but is built for the outback pilot. When you have places to see and everywhere to go, this is your trike!
The Navajo airframe is a revolutionary design incorporating sport aircraft design suspension, welded 4130 aircraft steel main structure (Back Frame), 4130 dual mast and trailing link front steering. Unlike the tube-and-plate constructed trikes with their single mast, drag struts, side support cables and bungee cord suspension, the Navajo airframe will maintain its structural integrity for years to come. You can enjoy years of sturdy and confident flying knowing your trikes' rugged and well-designed suspension won't get worn out. The Navajo can be ordered with a variety of options.
The Navajo streamlined instrument pod provides a large layout area of gauges and optional 12V DC power for your GPS. Here you also see the rugged yet keen design of the Navajo front fork wheel system. You will appreciate the solid yet responsive feel of its trailing link suspension. The front suspension works so well, it survived a full front wheel landing at 60 mph!
| Scout XC (Rotax 912 engine) · Performance & Specifications | ||
| (Specifications in Feet, Inches, Pounds unless stated) | ||
| SCOUT XC (912) | SCOUT XC (912) | |
| PERFORMANCE | Mustang 3 15M Wing | GT5 Wing |
| Take-Off Distance / clear 50 feet | 600 | 780 |
| Landing Distance / clear 50 feet | 750 | 800 |
| Climb Rate @ Gross | 850 | 775 |
| Stall Speed @ Gross | 34 | 41 |
| Stall Speed @ 750 lbs. | 30 | 38 |
| Cruise @ Gross | 52 | 65 |
| Descent Rate@ Gross / Idle | 600 fpm @ 44 | 700 fpm @ 58 |
| Fuel Capacity Note b | 16.25 | 16.25 |
| Fuel Burn @ Cruise (Gross) | 2.5 | 3 |
| Range @ Cruise (Gross) | 322 | 335 |
| DESIGN LOADS | Mustang 3 15M Wing | GT5 Wing |
| Gross Weight or MTOW | 1060 | 1060 |
| Empty Weight | 545 | 550 |
| Maximum Empty Weight | 645 | 650 |
| Total Crew Weight @ full fuel | 415 | 410 |
| Minimum Take-Off Weight | 700 | 750 |
| DIMENSIONS | Mustang 3 15M Wing | GT5 Wing |
| Wing Span (feet) | 31.5 | 31.5 |
| Wing Area (meters) | 15 | 13.5 |
| Wing Weight | 113 | 118 |
| Height - wing level (feet) | 8.5 | 8.5 |
| Wheel Base C to C | 73 | 73 |
| Wheel Track | 68 | 68 |

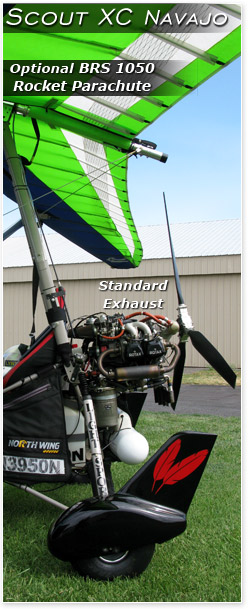

The Scout XC · Navajo is rated as a Special Light Sport Aircraft (S-LSA) using the Rotax 912 engine,
but also can be flown as an Experimental Light Sport Aircraft (E-LSA) with the HKS engine.

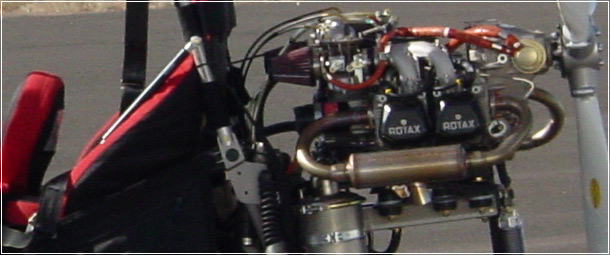

Scout XC Navajo engine configurations: · Standard wing (S-LSA) - Quest GT5 strutted wing
| Scout XC Navajo S-LSA |
| Rotax 912 engine |
| Dual Ignition / Dual Carb |
| 80 HP / 2.62:1 |
| Electric Starter |
| 17 gallon Fuel Tank |
| Warp Drive Propeller |
| EIS Digital Gauge |
| Scout XC Navajo E-LSA |
| HKS engine |
| Dual Ignition / Dual Carb |
| 60 HP / 3.47:1 |
| Electric Starter |
| 17 gallon Fuel Tank |
| Warp Drive Propeller |
| EIS Digital Gauge |
Retrofit Kits and Factory Retrofits improve your 2-place trike with the latest design features.
Browse through the retrofit kits and factory retrofits to see the safety and performance advantages available.
Retrofit Kits are an economical way to enhance your trike:

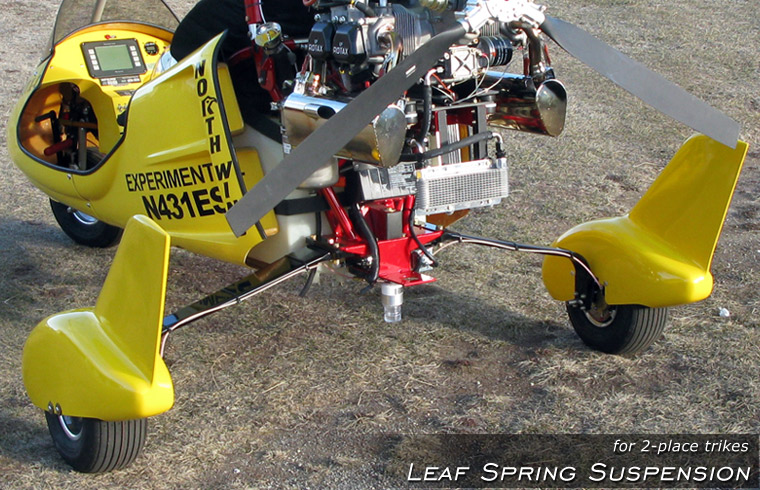

Aluminum Leaf Spring Landing Gear$1,600.00Order Code: SLG912
• Our top-of-the-line 2-place Landing Gear.
• Reduces drag with slim profile - rugged and strong 7075 Aluminum.
• The Electric Adjustable Seat is a convenient feature to consider adding
when you order the new leaf spring suspension on your new trike.
• 2-place trikes with the standard, strutted landing gear can also add
the new suspension with the Leaf Spring Suspension Factory Retrofit.
MicroAir Radio with Lynx Intercom$4,325.00Order Code: N760LYNX
• Complete Avionics System, installed.
• Includes 2 Lynx Helmets, 2 Face Shields, Charger, Antenna.
• MicroAir In-Dash Radio.
Click Here or Click Photo to view an enlargement
Aerolux 3-blade Propeller$410.00 (Upgrade Price)Order Code: UPG27
• Runs 300 to 500 rpms lower at cruise
• Results in 5% to 10% better fuel economy.
• Blades have longer and wider metal leading-edge protection.
Notes from a Scout XC pilot...
"Kamron, a quick note to tell you how happy I am with my 912 Navajo M-Pulse II 15 M wing. This is my 3rd Apache/Navajo and I couldn't be happier with it! I've watched you improve your product over the years and it just keeps getting better and better. My first Apache was a partnership deal with another new pilot and we beat the crap out of it with hard landings. It is still a great trike and has never got "sloppy". This trike had the old suspension, which in my opinion is far above the compitition. The new suspension is even better! My buddy still flys it to this day and it is still "tight" and a very good trike.
I like your customer service and I'm a North Wing man for life! Parts are relatively cheap and unlike the compitition, arrive within a week or so. Keep up the great work and thanks for your contributions to this exciting sport!"
David Dixon · Holbrook AZ
