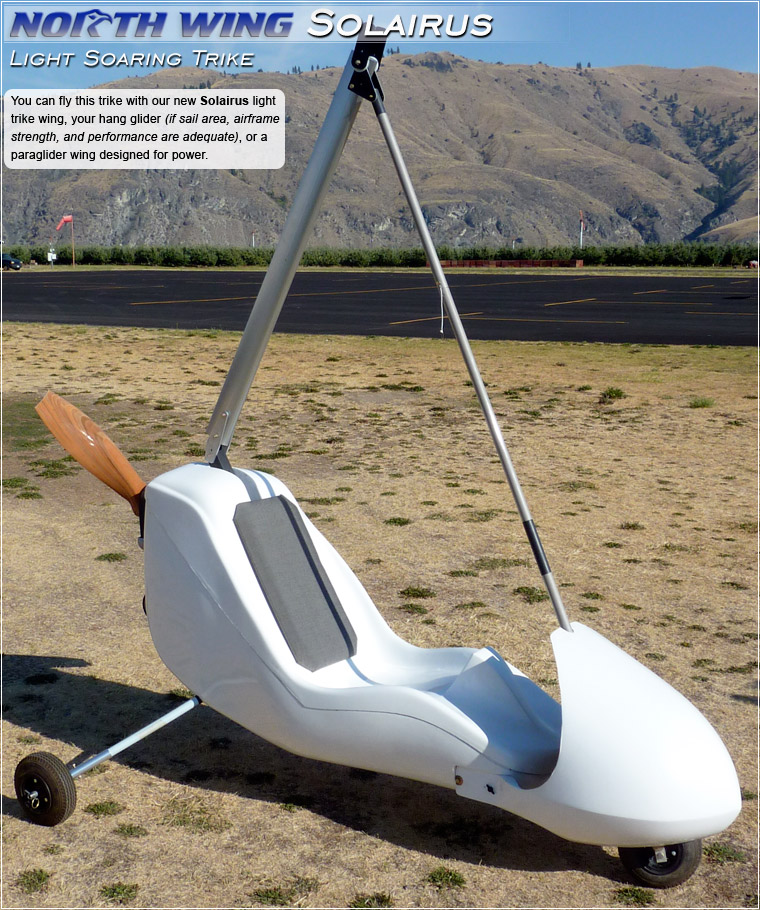

The new Solairus Soaring Trike is a very streamlined and very portable, composite light soaring trike from North Wing.

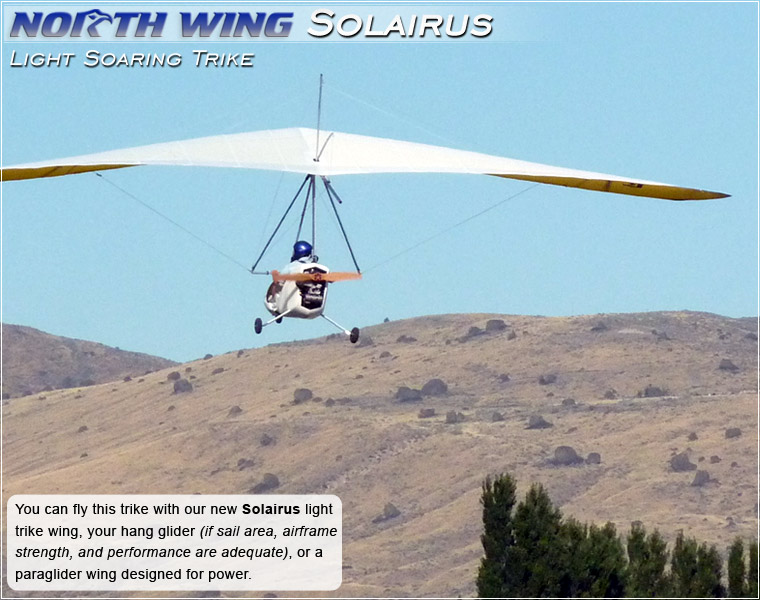

Chrome-moly reinforcement adds strength to the fiberglass composite uni-body design.  You can fly this trike with our new strutted Solairus light trike wing, your hang glider (if sail area, airframe strength, and performance are adequate), or a paraglider wing designed for power.  The streamlined shape of the Solairus reduces drag and fuel consumption, with the engine almost completely enclosed within the trike.  Very portable - breaks down to 58" long - 24" wide - 33.5" high.

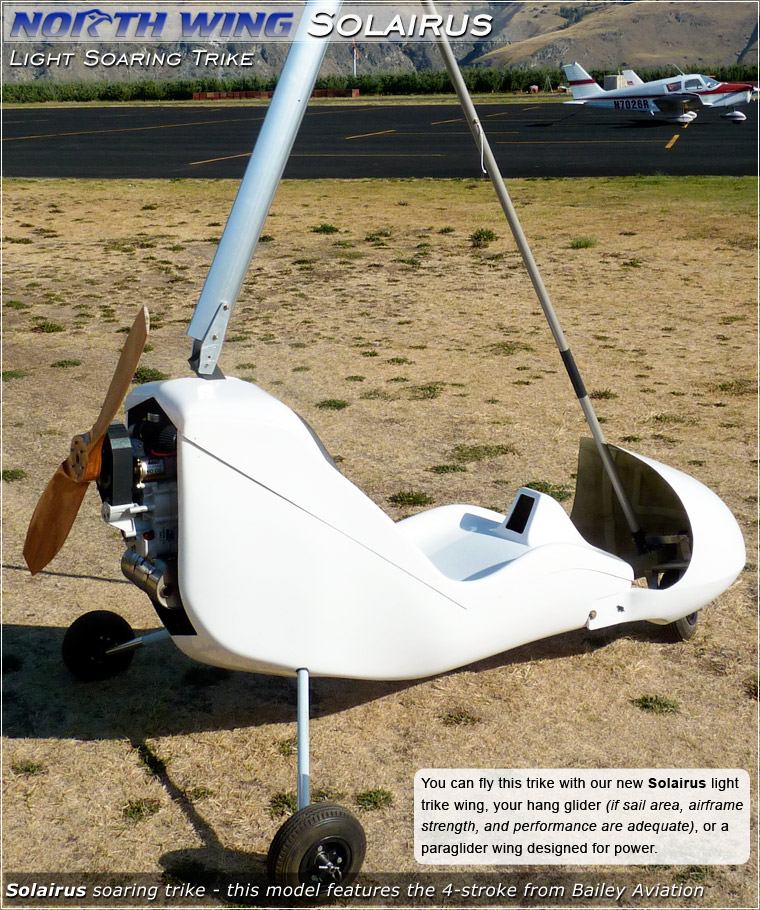

The Solairus can be powered by the Polini THOR 100 or Polini THOR 200 2-stroke engines, or the Bailey V4-200 4-stroke engine.  The Solairus rear wheels also include low-drag, streamlined Wheel Fairings.  Contact Us or contact a dealer from our worldwide North Wing Dealers network to learn more about this exciting new light soaring trike.


Polini THOR 100 engine Polini THOR 200 engine Bailey V4-200 engine
Polini THOR 100 engine for the Solairus soaring trike Polini THOR 200 engine for the Solairus soaring trike Bailey V4-200 engine for the Solairus soaring trike
20.5 HP @ 8900 RPM 29HP @ 7400 RPM 22 HP @ 8200 RPM
pull start electric start electric start
2-blade, 48" wood prop 2-blade, 48" wood prop 2-blade, 48" wood prop
Solairus Trike · Specifications
Weight - with Bailey V4-200 engine 114 lbs.
Rear Wheel Base 60" measured from outside of tire
Smallest Size break-down 58" long - 24" wide - 33.5" high
Solairus Trike · Features
•  Rear Wheel Fairings
•  4" Nylon Wheels
•  RPM/Hobbs & CHT/EGT Gauges
•  3-gallon Fuel Tank
Solairus Trike · Options
•  Strobe (only Electric Start)
•  AIR 550 Rocket Parachute
•  Carbon Fiber Propeller

The Solairus light trike wing is the perfect match for your new Solairus Soaring Trike or ATF Soaring Trike!
The Solairus Wing has convenient Fold-Back ability, allowing wings to be rolled and folded-back for storage and travel.

Solairus · Light Trike Wing
Click here to view the Solairus Wing Photo Gallery

The Solairus light trike wing is available in two sizes:

Sail Area   17M   16M
Span   34.7 feet   32.5 feet
Nose Angle   126 degrees   126 degrees
Aspect Ratio   6.33   6.15
Stall at Gross   21 mph   21 mph
Trim Speed   25-30 mph   25-30 mph
Top Speed   45 mph   45 mph
VNE   53 mph   53 mph
Sink Rate   220 FPM   220 FPM
Glide Ratio (L/D)
with Solairus trike   11.5 : 1   11.5 : 1
Glide Ratio (L/D)
with ATF trike   10.5 : 1   10.5 : 1
17M = 390 lbs to 490 lbs Gross
(Approximate Pilot weight: 180 to 290 lbs.)
16M = 320 lbs to 420 lbs Gross
(Approximate Pilot weight: 110 to 220 lbs.)
