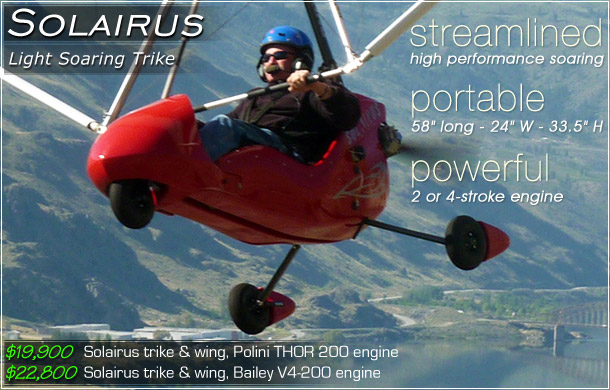

The Solairus Soaring Trike is a very streamlined and very portable, composite light soaring trike from North Wing.
Chrome-moly steel reinforcement adds strength to the fiberglass composite uni-body design, which includes Carbon Fiber reinforcement for rugged strength and light weight.

You can fly this trike with our strutted Solairus light trike wing, your hang glider (if sail area, airframe strength, and performance are adequate), or a paraglider wing designed for power.  The streamlined shape of the Solairus reduces drag and fuel consumption, with the engine almost completely enclosed within the trike.  Very portable - breaks down to 58" long - 24" wide - 33.5" high.

The Solairus can be powered by the Polini THOR 100 or Polini THOR 200 2-stroke engines, or the Bailey V4-200 4-stroke engine.  The Solairus rear wheels also include low-drag, streamlined Wheel Fairings.  Contact Us or contact a dealer from our worldwide North Wing Dealers network to learn more about this ultra streamlined light soaring trike.

July, 2012 · ARLINGTON WA USA  Light Sport & Ultralight Flying Video Magazine interviews Kamron Blevins from North Wing, featuring the Solairus light soaring trike.  Click here to view the video, which shows the short take-off capability and outstanding climb rate of the 29HP Polini THOR 200 engine.  Available with either the Solairus 16M or Solairus 17M wings.

The following Standard Features are included in the base price of the Solairus Soaring Trike:

	Solairus Soaring Trike  ·  Standard Features
	Mouse over the links to view information

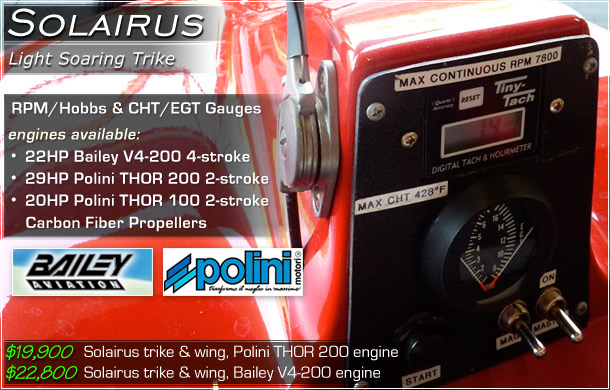

	»  RPM / Hobbs Meter & CHT / EGT Gauges
	»  Strutted, double-surface Solairus Trike Wing
	»  Streamlined unibody design, Mast and Axle Fairings
	»  Trike design features very strong, lightweight materials
	»  2-blade Carbon Fiber Propeller & Propeller Brake
	»  Comfortable Seat with 4-point Harness
	»  Trike frame length adjusts with 4 settings
	»  Front Brake for braking control
	»  Hand Throttle mounted in convenient location	The Solairus includes RPM/Hobbs and CHT/EGT Gauges as standard equipment. The Solairus Trike includes the Solairus Wing as standard equipment, featuring a strutted airframe that is very strong and the latest wing design for great handling and cruise performance - a perfect match for the Solairus trike.  The Solairus Wing has another feature for convenient travel or storage, the ability for the wing to Fold-Back while attached to the trike. The Solairus has a very streamlined uni-body design, and also includes Mast, Axle, and Rear Wheel Fairings for the lowest drag coefficient possible.  Choose from Red, Yellow, Black, or White body colors, or talk to us about a custom color. The Solairus trike body achieves its rugged strength from a combination of strong and lightweight materials.  4130 chrome-moly alloy steel reinforcement (excellent strength to weight ratio) adds strength to the fiberglass composite uni-body design, and includes Carbon Fiber reinforcement. The Solairus comes with a 2 blade Carbon Fiber Propeller propeller as standard equipment, maximizing performance and fuel economy for the Solairus Soaring Trike.  A Propeller Brake is included on the 2-stroke Polini engines to promote low-drag, engine-off soaring performance (not necessary on Bailey engines). The comfortable Seat on the Solairus secures the pilot with a 4-point Lap and Shoulder Harness.  You will appreciate the comfort of the seat during long flights. The Solairus trike frame has four settings for pilots of varying height, so you can adjust the length of the frame for a perfect fit. The Solairus features a front brake pedal mounted to the forks for control while on the runway. The Solairus hand throttle is conveniently located to the left of the pilot. The Solairus includes a 3 gallon Fuel Tank with Fuel Filter, with an adjacent Sight Tube for checking fuel level. The Solairus includes strong and lightweight 5" Nylon Wheels, with Wheel Fairings on the rear wheels. The fiberglass rear suspension on the Solairus is designed for durable, rugged strength while keeping weight low.
	»  3 Gallon Fuel Tank with Sight Tube, Fuel Filter
	»  5" Nylon Wheels with Fairings on rear wheels
	»  Fiberglass Rear Suspension

Polini THOR 100 engine		Polini THOR 200 engine		Bailey V4-200 engine
20.5 HP @ 8900 RPM		29HP @ 7400 RPM		22 HP @ 8200 RPM
Pull Start only		Pull Start (optional Electric Start)		Electric Start only
2-blade Carbon Fiber Propeller		2-blade Carbon Fiber Propeller		2-blade Carbon Fiber Propeller

Solairus Trike · Specifications
Weight - with Bailey V4-200	114 lbs.
Rear Wheel Base	60" measured from outside of tire
Smallest Size break-down	58" long - 24" wide - 33.5" high

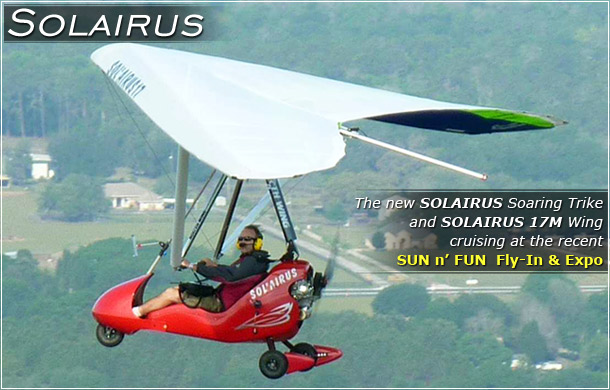

The Solairus light trike wing is the perfect match for your new Solairus Soaring Trike or ATF Soaring Trike!

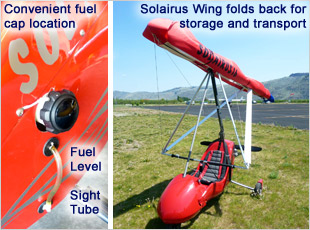

The Solairus Wing has convenient Fold-Back ability, allowing wings to be rolled and folded-back for storage and travel.

Click here to view the Solairus Wing Photo Gallery

The Solairus light trike wing is available in two sizes:

Sail Area		17M		16M
Span		34.7 feet		32.5 feet
Nose Angle		126 degrees		126 degrees
Aspect Ratio		6.33		6.15
Stall at Gross		21 mph		21 mph
Trim Speed		25-30 mph		25-30 mph
Top Speed		45 mph		45 mph
VNE		53 mph		53 mph
Sink Rate		220 FPM		220 FPM
Glide Ratio (L/D)
with Solairus trike		11.5 : 1		11.5 : 1
Glide Ratio (L/D)
with ATF trike		10.5 : 1		10.5 : 1
17M = 390 lbs to 490 lbs Gross (Approximate Pilot weight: 180 to 290 lbs.)
16M = 320 lbs to 420 lbs Gross (Approximate Pilot weight: 110 to 220 lbs.)

Add rocket parachute safety to your flights - with new trike orders
AIR 550 Rocket Parachute$2895.00Order Code: SC550SP

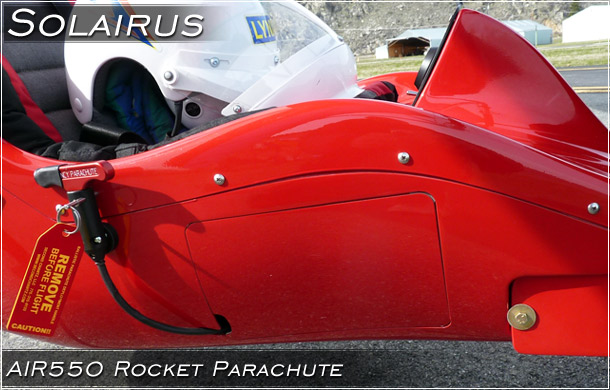

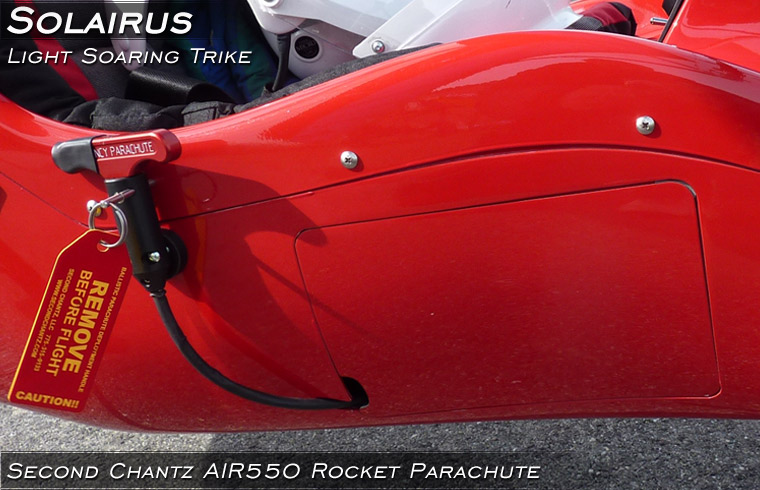

The Second Chantz AIR 550 Rocket Parachute (Soft Pack) is an important addition to your new Solairus Soaring Trike, bringing ballistic parachute safety to your flights.
The deployment handle is conveniently located next to the pilot, with the parachute cleanly mounted within the Solairus trike body.

Add a single Strobe Light to your trike - with new trike orders
Single Smart Strobe (installed)$223.00Order Code: UPG35

Improve your visibility among traffic during early morning and evening flights for added safety!  Consider this important safety option when you order a new trike.

Add All-Weather 12-Volt Power to your trike - with new trike orders

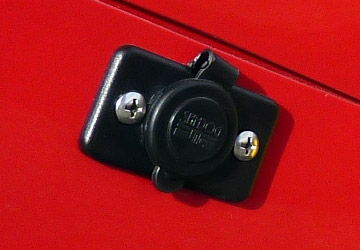

12 Volt Power Outlet (installed)$60.00Order Code: UPG63

Add a 12 Volt DC Power Outlet to your Solairus to power your GPS or other 12V accessories.  All-weather design includes a protective cover for when not in use.  (Electric Start required)

Trike Wing Cover Protect your trike wing from snow, rain, dust and especially UV when it is set-up with the North Wing Wing Cover. $319.00 Order Code: HAC14 (please specify wing name)
