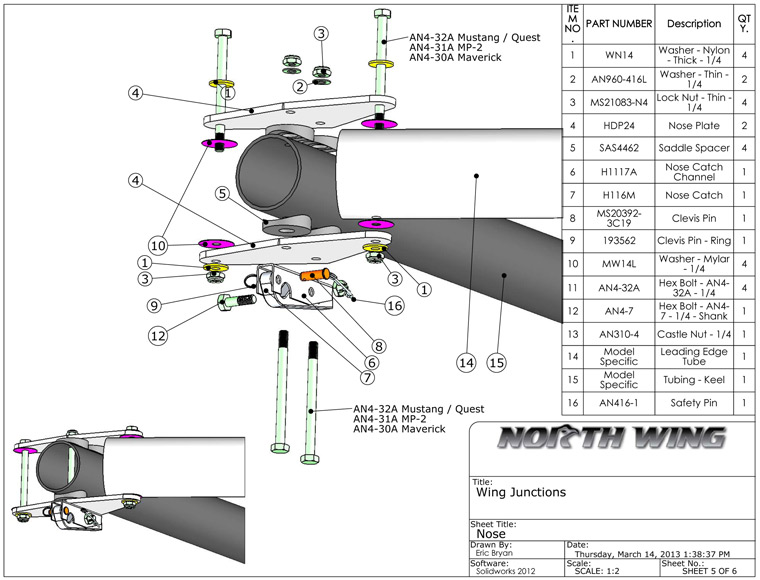

Nose Assembly
Parts Diagram & Parts List

Click here to view a Print page for the
Nose Assembly parts diagram.


»  Control Frame Apex to Keel parts diagram
»  Cross Bar Center Junction parts diagram
»  Leading-Edge to Cross Bar parts diagram
»  Lower Control Frame parts diagram
»  Nose Assembly parts diagram
»  Keel - Rear parts diagram
Mustang Wing Series - wing parts


Wing Junction · Nose Assembly     Parts Diagram & Parts List     Print this Parts Diagram

Wing Junction - Nose Assembly
