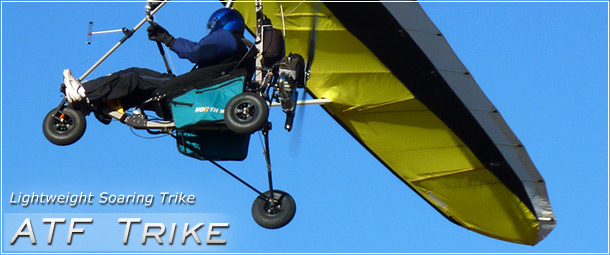

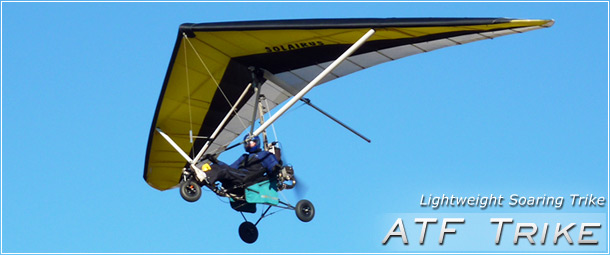

ATF Ultralight Soaring Trike
| ATF Trike, 27HP Polini 190 engine, Solairus wing, 2-blade carbon propeller starting at $19,900.00 |
| ATF Trike, 38HP Polini 303E engine, Solairus wing, 2-blade carbon propeller starting at $21,490.00 |
| ATF Trike, 27HP Minari F1-AERF engine, Solairus wing, 2-blade carbon propeller starting at $19,900.00 |
||||
|
Add the new Half Fairing for flight comfort and reduced drag $945.00 |
If you prefer to use the new Discovery 207 wing with ATF Trike, deduct $1000 from these prices.
View more ATF ultralight trike photos in the Photo Gallery - View a list of ATF Trike upgrades in the Trikes Price List
Click here to view Parts Lists and related diagrams for the ATF Soaring Trike.
Imagine! Ascend effortlessly up to cloudbase. Shut the engine off and soar in silence with the birds all afternoon.
When the lift gets light, pull the overhead starter and fly back to your flying field.

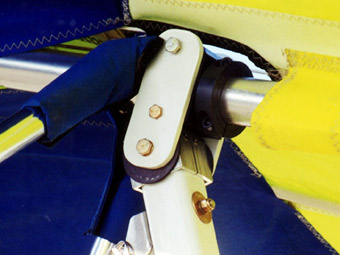

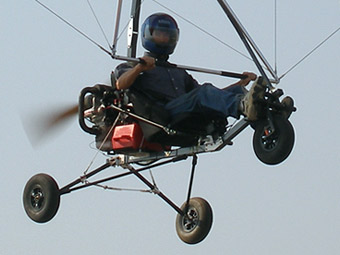

The ATF Soaring Trike (ATF = Air Time Fix) adds power to your hang glider so you can climb to the thermals and power-off for lightweight trike soaring! You can use your hang glider with the ATF Trike, or use our specially-designed Solairus 16.8M wing which has been built specifically for lightweight trikes, with a state-of-the-art airfoil design. The strutted, double surface Solairus 16.8M wing provides best performance for cross-country, has a great sink rate and slow-speed handling, and is best for short-field take-offs. No mountain, no problem!
Discovery 207 - New wing option for the ATF Soaring Trike
North Wing has completed flight tests and wing refinement for the new, more-affordable wing option for the ATF Soaring Trike, the Discovery 207 - Ultralight Trike Wing. This 207 sq ft wing features 35% double-surface, a 17 mph Stall, and 220 fpm Sink Rate! (at Gross) Click on the photos below to view enlargements of this exciting new light trike wing.
For Light Trike weight of 90 to 170 lbs.
Speed references on flex wings are +/- 10%
| Sail Area | 207 sq. ft. | |||
| Span | 35 feet | |||
| Number of Ribs | 18 | |||
| Double-Surface | 35% | |||
| Stall (@ 390 Gross) | 17 mph | |||
| Max | 40 mph | |||
| VNE | 47 mph | |||
| Max HP | 39 HP | |||
| Sink Rate @ 25mph | @ 390 Gross | 220 FPM | ||
| Gross take off weight | 480 lbs. | |||
| Length in Bag | 20' 3" | |||
 |
||||
| Min Gross 350 lbs to 480 lbs Gross (trike, wing, pilot, etc.) |
||||

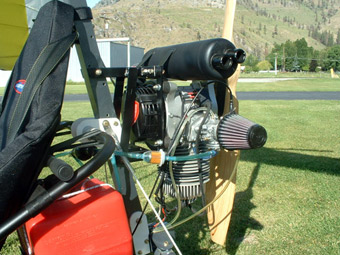

| Engines available for the ATF Soaring Trike | |
 |
|
| 27HP Minari F1-AERF engine | 27HP Polini 190 engine |
 |
|
| optional Half-Fairing | 38HP Polini 303 engine |
| ATF Trike - Specifications | ||
| Weight | 102 lbs. | |
| Empty Weight | 186 lbs. | |
| Gross Weight | 550 lbs. | |
| Climb Rate | Approx. 300-500 FPM | |
| Sink Rate | 220 FPM | |
| Glide Ratio (L/D) | 10.5 : 1 | |
| Wheel Base | W-62" (outside) | |
| Wheel Base | L-61" (front-to-rear) | |
| Height - Trike folded | 2.25 feet w/o prop | |

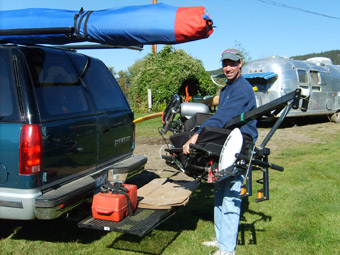

| Smallest Size folded | W27" x H30" x L55" | |
| ATF Trike - Features | ||
| • 6" Nylon Wheels | ||
| • 4-Point Harness | ||
| • Hand & Foot Throttle | ||
| • Fuel Primer | ||
| • Utility Bag | ||

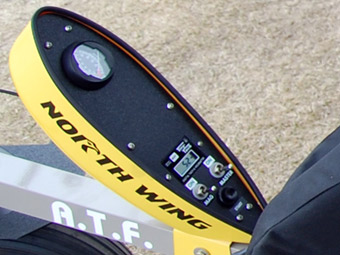

| • RPM/CHT Gauges | ||
| • Black Seat | ||
| • Fail-Safe engine mount | ||
| ATF Trike - Optional Accessories | ||
| Strobe (only Electric Start) | ||
| Parachute - BRS 600S Rocket | ||
| Parachute - Hand Deploy | ||
| Saddle Bags (pair) | ||
| 5-gallon Fuel Tank | ||
| Carbon Fiber Prop for Simonini | ||
| Custom Sail Design | ||
 |
|
 |

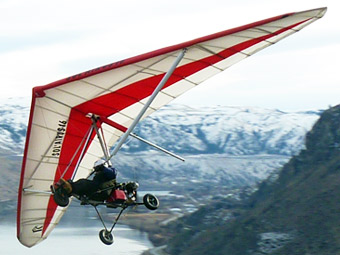

You can use your hang glider with the ATF Trike, or use our specially-designed Solairus 16.8M wing which has been built specifically for lightweight trikes, with a state-of-the-art airfoil design. The strutted, double surface Solairus 16.8M wing provides best performance for cross-country, has a great sink rate and slow-speed handling, and is best for short-field take-offs. |
The Solairus light trike wing is the perfect match for your new ATF Soaring Trike!
The Solairus Wing has convenient Fold-Back ability, allowing wings to be rolled and folded-back for storage and travel.
Click here to view the Solairus Wing Photo Gallery
For Light Trike weight of 90 to 170 lbs.
Speed references on flex wings are +/- 10%
| Sail Area | 16.8M | 181 sq. ft. | ||
| Span | 34.3 feet | |||
| Nose Angle | 126 degrees | |||
| Aspect Ratio | 6.3 | |||
| Stall at 490 Gross | 22 mph | |||
| Trim Speed | 28-34 mph | |||
| Top Speed | 45 mph | |||
| VNE | 53 mph | |||
| Sink Rate @330 | +/- Gross | 235 FPM | ||
| Wing Weight | 84 lbs. | |||
| Wing Length folded | 18.3 feet | |||
| Glide Ratio (L/D) | ||||
| with ATF trike | 10.5 : 1 +/- | |||
|
||||
| Min Gross 350 lbs to 550 lbs Gross (trike, wing, pilot, etc.) |
||||
 |
Half-Fairing for ATF Trike Extend your flight comfort through the seasons with the new Half-Fairing for your ATF Ultralight Trike. Streamlined design reduces drag and the wind-shield is great in cooler weather. Install or remove from trike in 30 seconds! Colors: Red, White, Black, Yellow Click here to view Half-Fairing photo enlargements (side, front, rear views). $945.00 (Custom Colors at additional cost) Order Code: HF23WW |
 |
Saddlebags with North Wing logo Bring along your maps, extra gloves, snacks, and more with a pair of Saddlebags for your ATF Ultralight Trike. $175.00 (each) Order Code: UPG39 |
 |
BRS 600 Rocket Parachute Add extra safety to your flights with the BRS 600 Rocket Parachute. Mounts behind seat, with easy-grab Deployment Handle located next to Instrument Pod. $4,975.00 Order Code: BRS600S |
 |
5 Gallon Fuel Tank Extend the range of your flights with the 5 Gallon Fuel Tank. (not removable) $189.00 Order Code: UPG65 |
 |

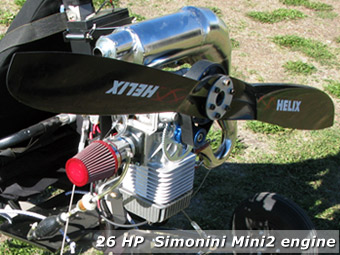

HELIX Carbon Fiber Propeller Increase the performance of your Simonini Mini2 engine with a Helix carbon fiber Propeller. $375.00 Order Code: UPGCFP |
 |
MicroAvionics UL-200 Integral Headset Helmet System  Maximum performance for open cockpit. Highly recommended for the touring pilot. Including ANR (Active noise reduction) and VOX. Built using a high specification low power audio amplifier, using surface mount technology, with an electronic speech processor to remove unwanted noise. Exceptionally quiet headset, great for long flights. $860.00 Order Code: MM001C |
$64.00 Order Code: HT7003
These vertical base tube grips give you a more natural hand position while flying your trike to reduce hand strain. Also, the grips give you ultimate control when the condition get a little active, especially while landing. They are quick to install on your base tube to your desired position.
Click here or Click Photo to view enlargement Order Code: HT7003
